Ceramic Thickfilm PCB Ceramic Printed Circuit Board Item No R0028 Ideal Solution for Power Electronics and RF Modules Applications

جزئیات محصول

Type:

Ceramic Thickfilm PCB

Substratetype:

Ceramic

Size:

2mm~200mm

Thickness:

0.1mm - 3.0mm

Productname:

Ceramic PCB Board

Application Segment:

Auto,Industrial,Medical,DataCom、Comsumer

Item No:

R0028

Dielectricconstant:

7-9

برجسته کردن:

ceramic thickfilm PCB for power electronics,ceramic printed circuit board for RF modules,ceramic PCB board with warranty

ceramic printed circuit board for RF modules

ceramic PCB board with warranty

شرایط پرداخت و حمل و نقل

محصولات مرتبط

Medical Ceramic PCB Board Incorporating Ceramic Substrate and HASL Surface Finish Providing Excellent Thermal Management

بهترین قیمت رو بدست بیار

RF Modules Ceramic PCB Board UL Certified Featuring Ceramic Thickfilm PCB Designed for Complex Electronic Circuit Integration

بهترین قیمت رو بدست بیار

Ceramic Substrate Type Ceramic PCB Board UL Certified Including 100 Percent E Testing Service Ensuring and Durability in Electronics

بهترین قیمت رو بدست بیار

Thickness 0.1mm to 3.0mm Ceramic Copper Clad PCB Featuring Size Range 2mm to 200mm Perfect for High Reliability Circuits

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

+001-512-7443871

sales@ltcircuit.com

حالا تماس بگیرید

توضیحات محصول

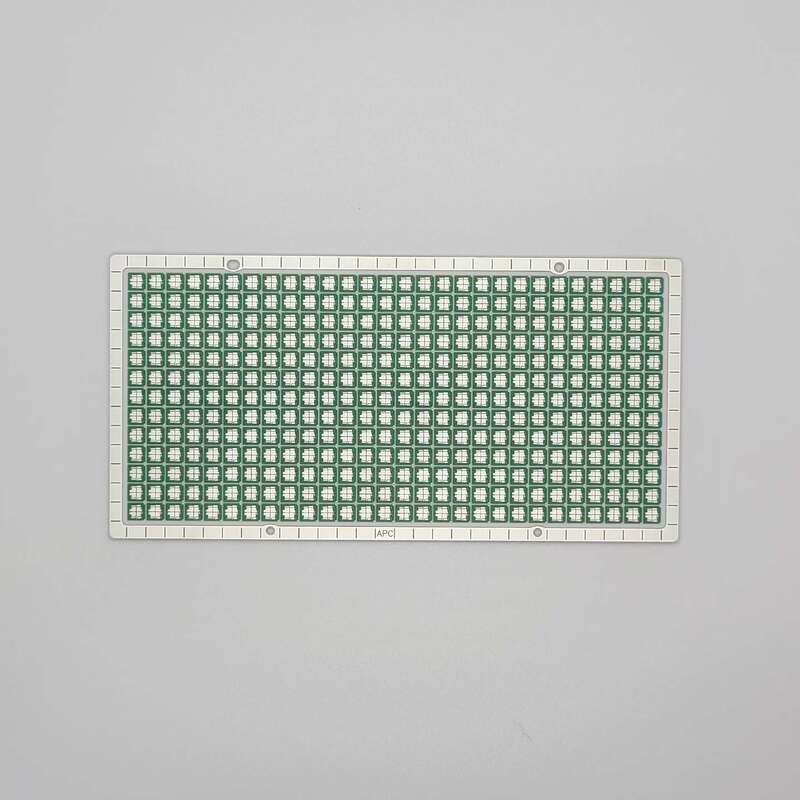

Ceramic Thickfilm PCB (Item No: R0028)

High-quality ceramic printed circuit board designed for power electronics and RF modules applications, offering exceptional thermal management, mechanical strength, and reliability.

Product Overview

This Ceramic Thickfilm PCB features impressive thickness versatility from 0.1mm to 3.0mm, with a standard thickness of 1.6mm that balances durability and compactness. The Al2O3 ceramic base material provides excellent thermal conductivity and electrical insulation, while the copper cladding ensures efficient signal transmission.

Key Advantages

Superior thermal conductivity (20-30 W/mK)
Excellent mechanical stability and corrosion resistance
Advanced thick film technology for precise patterning
Suitable for harsh environments including industrial, aerospace, and military applications

Technical Specifications

Parameter	Specification
PCB Thickness	1.6mm (0.1mm - 3.0mm range)
Application Segments	Auto, Industrial, Medical, DataCom, Consumer
Dielectric Constant	7-9
Certificates	ISO9001, ISO14001, IATF16949, UL
Substrate Type	Ceramic
Copper Thickness	18µm - 105µm
Surface Finish	ENIG, HASL, Gold Plating
Size Range	2mm - 200mm
Layer Count	1-4 Layers

Primary Applications

High Power Electronics: Power amplifiers, power supplies, and modules requiring effective heat dissipation
LED Lighting: Automotive lighting, street lighting, and high-intensity LED arrays
RF Modules: Communication devices, radar systems, and RF applications

Customization Options

We offer comprehensive customization services including DBC, DPC, LTCC, and HTCC processes to meet specific application requirements across automotive, industrial, medical, data communication, and consumer electronics segments.

Handling & Support

For optimal performance, avoid mechanical stress and use precise temperature control during soldering. Keep boards clean and free from contaminants. Comprehensive technical support and detailed documentation available for all projects.
